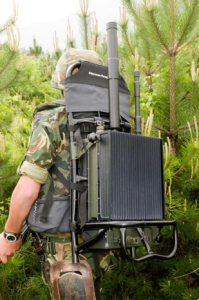

THE PURPOSE OF THE BACKPACK RADIO JAMMER BJTMVIP-200BP IS TO ENSURE INDIVIDUAL PROTECTION FROM RADIO-CONTROLLED BOMBS – APPLICABLE FOR BOMB DISPOSAL.
IT TRANSMITS BARRAGE RADIO JAMMING SIGNALS IN THE FREQUENCY BANDS, WHICH ARE MOST COMMONLY USED FOR DETONATING RADIO-CONTROLLED BOMBS.
The BJTMVIP-200CT is a modular device. It is fitted in a standard briefcase and consists of 4 transmitter modules. You jam receivers of cellular phones. Each module works with a separate transmitting antenna. The internal antennas are made on a PCB. There is also an option for external antennas.
BJTMVIP-200CT complies with the requirements for professional equipment, working in static and mobile modes. It has an automatic electronic protection system and indication. The protection system ensures the jammer’s flawless operation and the indication system shows its status, including the presence of radio transmission.
TECHNICAL SPECIFICATION
| PARAMETERS | PRESENCE |
| 1. Frequency ranges, MHz | NMT: 400 ÷ 520, GSM: 810 ÷ 895 / 925 ÷ 960, GSM: 1805 ÷ 1880 / 1930 ÷ 1990 3G: 2110 ÷ 2170 |
| 2. Total output power, W | >55 |
| 3. Antennas | Built-in or external |
| 4. Category of the jamming | Barrage; Fast random scanning |
| 5. Internal power supply | Rechargeable battery, 12 V |
| 6. Battery charger | Built-in |
| 7. External power supply with simultaneous charging of the battery |
On-board power supply (DC) from 11 V to 15 V; Mains power (AC): from 100V to 250V/50, 60, 440 Hz |
| 8. Operation time, min | From the battery: ≥ 60 From external power supply: unlimited |
| 9. Working temperature, 0С | From -30° to +50° |
| 10. Weight, kg | ≤ 16 |
| 11. Remote control by cable | Up to 100 m |
| 12. Protection for the operating personnel | Standard SAR and Standard STANAG 2345 |
| 13. Protection distance1) | ≥ 20 m |
NOTE: 1). PROTECTION DISTANCE – this is the distance between the jammer and the receiver of the radio line that controls the bomb.
